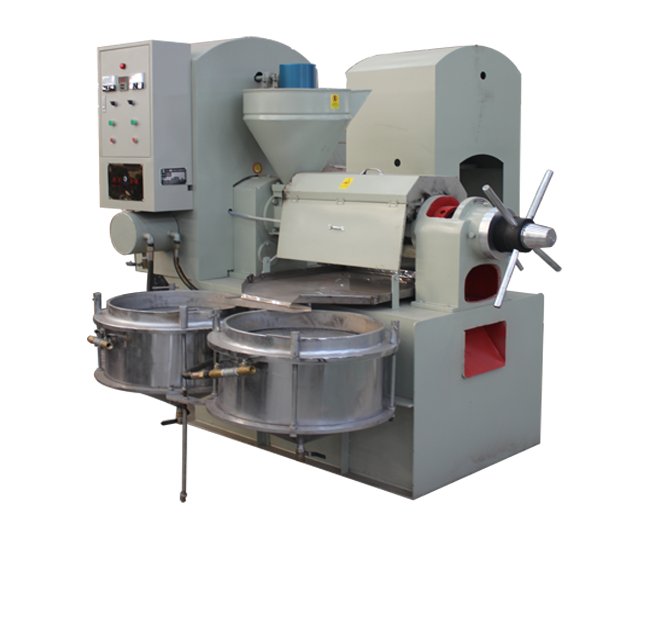

Integrated sunflower seed oil press machine is a kind of superior oil pressing machine nowadays in the market. Integrated sunflower oil press machine is used for processing cooking oil from various oil bearing materials such as peanuts, soybeans, sunflower seeds, rapeseeds, oil palm, sesame seeds and so on. This integrated screw oil press is suitable for both cold and hot pressing. This integrated screw oil press is suitable for both cold and hot extrusion.
Processing Capacity: 1-30T/D
Residual oil rate: ≤7
all machine can be customized according to customers' needs.
The integrated sunflower oil press machine with filter has the advantage of higher efficiency, lower consumption, simple operating, stable function, easy maintenance, high productivity and high oil output. The integrated sunflower oil press machine with filter mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system, Therefore, such integrated oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.
The integrated sunflower oil press machine with filter could extract vegetable oil from all kinds of oilseeds, such as soybeans, sunflower,peanuts, cotton seeds, sesame, tea seeds, copra, palm kernel, jatropha seeds, castor seed,maize and olive, etc.
QIE Machinery is a professional small sunflower oil mill plant manufacturer. We can provide sunflower oil press machine, small scale sunflower oil mill plant, sunflower oil production line and sunflower oil refinery machine, turnkey sunflower oil processing plant solutions from plant layout design, machinery manufacturing, onsite debugging and installing.
When the oil press runs,the processed oil materials enter into the squeezing chamber through the hopper. The screw rotor propels the oil materials inward and squeezes them.The oil materials inthe squeezing chamber are motoral. ln the high-pressure chamber, there is great friction resistance between oil materials and squeezing spiral or squeezig chamber, thus the micro materials can create friction. On the other hand, the squeezing screw diameter is gradualy thickening and the screw pitch is gradualy decreasing, so when the squezing screw rotates,the screw threads can propel the oil materials fonward or outward. The heat generated by friction can improve the yield of the oil pres,and let the oil flows from the gaps. When the overflowing oil flows onto the oil filtering barrel through the oil tray,the vacuum pump pumps the air in the barrel,and then negative pressure forms in the barrel. The oil is pumped into the barrel through the fitering cloth and the oil residues are left on the fitering cloth.
*Advanced Technology: reliable performance, easy operation, and convenient maintenance.
*High oil yield: compared with the old-style equipment, the oil yield can increase 2%-3%.
*Lower Power Consumption: integrated screw oil press can decrease 40% power with the same output.
*Wide usage: the automatic screw oil press can press multiple oil crops, such as peanuts, sesame, sunflower seeds, and soybeans etc.
*Pure oil: vacuum filtering device of the automatic screw oil press can ensure the pure ol conforming to the health and quarantine standard.
*Automatic control: this oil press can control the squeezing temperature automaticaly,built-in vacuum shunt can make the efficient separation of oil and residue.
*Covering small floor space: only 10-20 sauare meters can satisfy the oil processing machine
Years of development have brought customers from all over the world. Contact us to start customizing a sunflower oil production line for your business.
First, integrated screw oil press combines all the features of a single screw oil press. It is automatic,multi-functional,labor-saving and provides high oil yield, etc. Integrated screw oil press is equipped with an electric cabinet control system to control the temperature of pressing cage automatically. In addition to that, an integrated oil press usually owns an oil filtering vat to filter the oil after the oil extracting process. So to a certain degree, it is more convenient, high-efficient and labor-saving.
Second, compared with hydraulic oil press, integrated screw oil press has many more models with wide processing amounts. For hydraulic oil press, there is only one model to choose. While integrated screw oil press has six models with daily processing scope ranging from 2 to 18 tons per day. It has bigger processing amount. Besides, integrated screw oil press has wider application scope. It can be used for pressing all oilseeds that a hydraulic oil press does but also be used for pressing sunflower seed, soybean, corn germ, coconut, palm kernel, cotton seeds, etc..
Above are some of the competitive advantages of an integrated screw oil press. But that’s definitely not to say other types of oil presses are not good. As the saying goes, there is no almighty in the world. Under certain conditions, screw oil press or hydraulic oil press is better than integrated screw oil press. We should consider all the feasibilities to decide which machine is most suitable for you finally.
QIE Machinery has over 40+ years experience in manufacturing and selling oil presses, we have been always valuing our customer's actual needs and serving them with heart and soul. So we have enjoyed high reputation and develop rapidly. All those who are still looking for such oil pressing machines, sincerely welcome your coming.

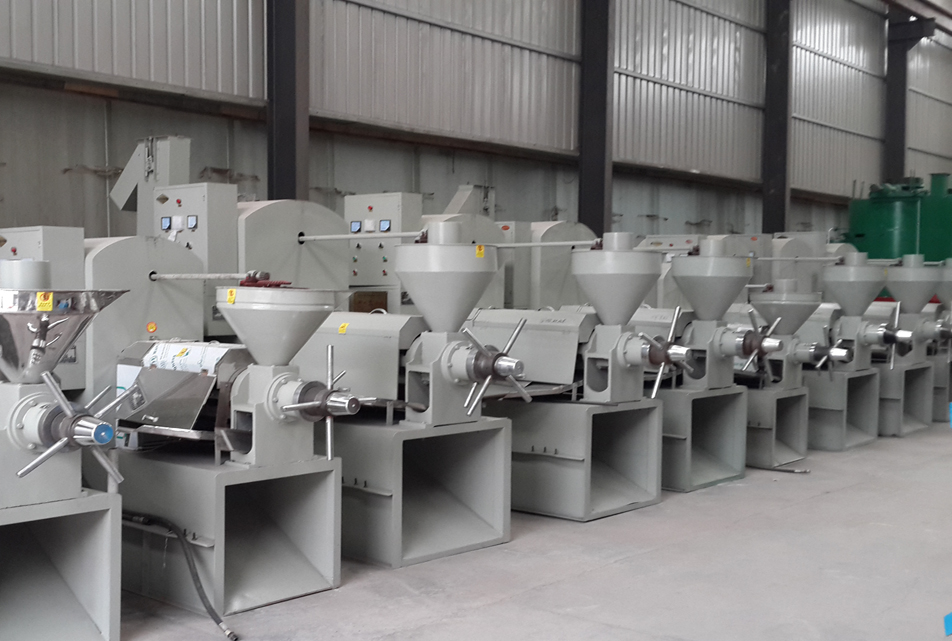

Our sunflower oil production equipment has been exported to more than 120 countries and regions, and many customers have established long-term cooperative relationships with us. Below are some of the sunflower oil production equipment and sunflower oil production lines we manufacture. Whether you need a single sunflower oil production equipment or a complete sunflower oil production line, we can customize it for you.
Production Output : 100TPD
Raw Materials : Crude Edible Oil
Production Output : 150TPD
Raw Materials : Cottonseed
Screw oil expeller machine is used for extracting edible oil from various kinds of oil seeds such as palm fruit,cotton peanut,soybean,flaxseed,sunflower,rapeseed,etc.Different from integrated oil press machine, Screw oil expeller machine is more suitable to large-scale cooking oil plants which produces high quality cooking oil.Screw oil expeller machine features high edible oil output, qualified cooking oil, and continuous operation.
Usually, we use physical pressing to extract cold-pressed oil from sunflower seeds, which is mainly divided into three stages: pretreatment section, pressing section, and filtering section. Next, I will introduce the production process and machine of cold pressed sunflower oil to you.
Cold pressing of oilseeds is an oil production process that meets the needs of "green" consumers. Cold pressing is a completely physical and mechanical method of oil production, so it avoids the contact between edible oil and organic solvents, acids, alkalis, active white clay and high temperatures that are the only common methods used today, and the resulting edible oil only needs to be filtered or dried to meet consumption requirements. The nutrient content of the sunflower oil is retained as much as possible.
Sunflower oil press machine is an essential equipment in sunflower oil extraction process. Without sunflower oil press machine , we can't extract out sunflower oil. If you want to extract oil from sunflower seeds at home, sunflower oil press machine need to be considered.
The oil content of sunflower seeds is about 40%-50%, and the residual oil rate of sunflower oil extracted by pressing method is about 6-8%, so oil extracted from 1 ton of sunflower seeds is 320-440 kg.
A screw press oil machine comprises a high-pressure cylindrical chamber through which the raw material moves. As it moves, friction and heat are generated, adding to the pressure of the chamber to squeeze out the oil.
Pressed oil: sunflower oil obtained by pressing method has no additives and is basically free of chemical residues. Therefore, the crude oil is of high quality and retains the nutrients in sunfloewr as well as the original natural flavour of the plant. However, the oil yield is lower, and the price of edible oil produced by pressing is higher than that produced by solvent extraction.
Solvent extraction oil: The solvent extraction method has a higher oil yield, less residual oil, makes full use of the oil resources, and is cheaper. However, it may affect the flavour of sunflower oil, and the nutrients are highly damaged and there will be various chemical residues.
